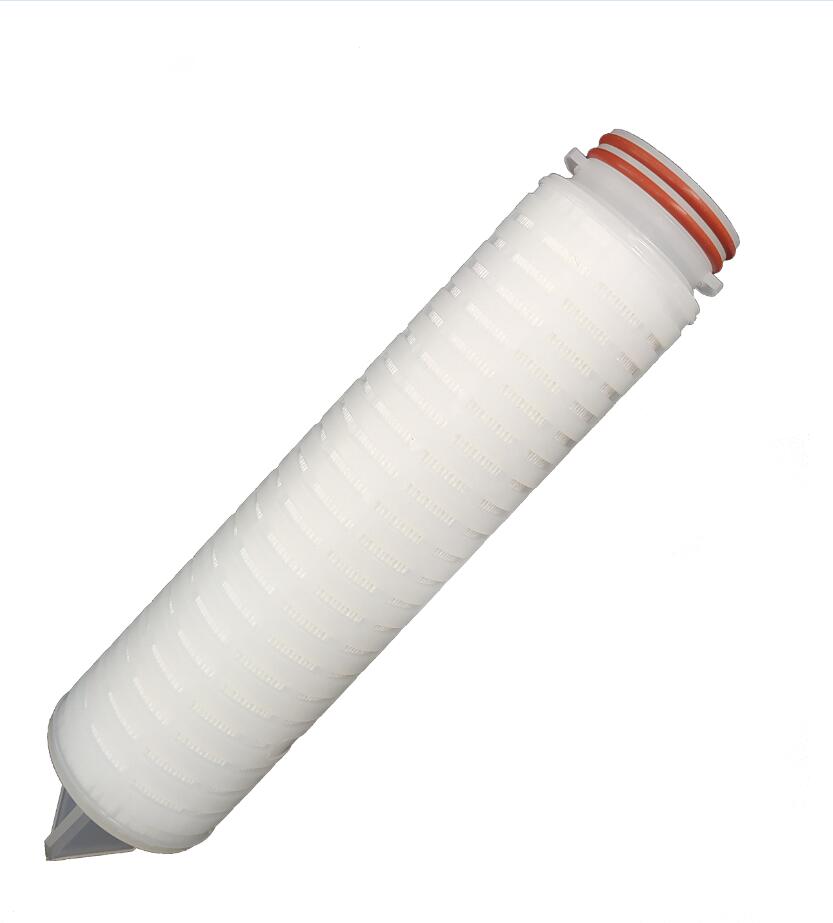

FNB PES Membrane Filter

FNB-PS is an absolute membrane pleated filters,the single layer PES membranes provided large filtration area,insure the high flow rate and low pressure drop, it use for beverage,soft drink steriliation filtration.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: Polypropylene Ratings 0.45,0,65,1.0 micron OD:2.7"(70mm)

Inner Cage: Polypropylene Absolute Filter Rating Length:10",20",30",40"

Endcaps: Polypropylene High surface area

O-ring&Gasket: Silicone, EPDM Long service life

Filter Media: PES Membrane FDA listed all polypropylene components

Specifications

Normal Operation Temperature:	up to 55°C
Max Operation Temperature:	85°C△P≦1Bar
Maximum Pressure differential:	4.2bar at 25°C
Maximum Reverse pressure differential:	2.1 bar at 25°C
Filtration Area:	>0.6m2
Forward Online Steam Sterilization( 1Bar)	125°C
Autoclave Steam Sterilization	121°C

Ordering Guide

FNB	Micron		Adapters		Length(Inch)		O-ring
PS	045	0.45	A	DOE	10	10"	V	Viton
	065	0.65	E	222/Fin	20	20"	E	EPDM
	100	1.0	E1	222/Flat	30	30"	S	Silicone
			F	226/Fin	40	40"	N	BUNA-N
			F1	226/Flat			T	TEFLON

Part No=PS+Micron+Adapters+Length+O-ring

EG: A 40 inch 1.0um filters with 226/Fin adapters and Viton O-ring

The Part NO:PS100F40V
