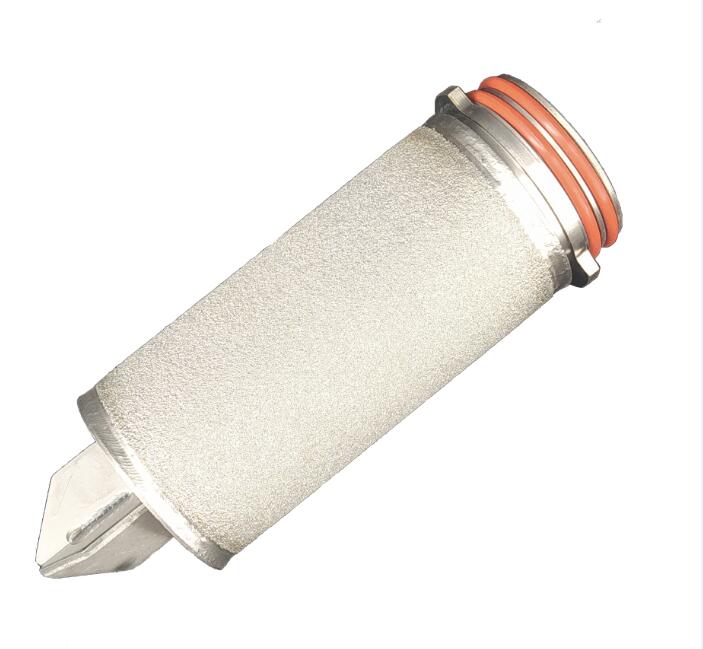

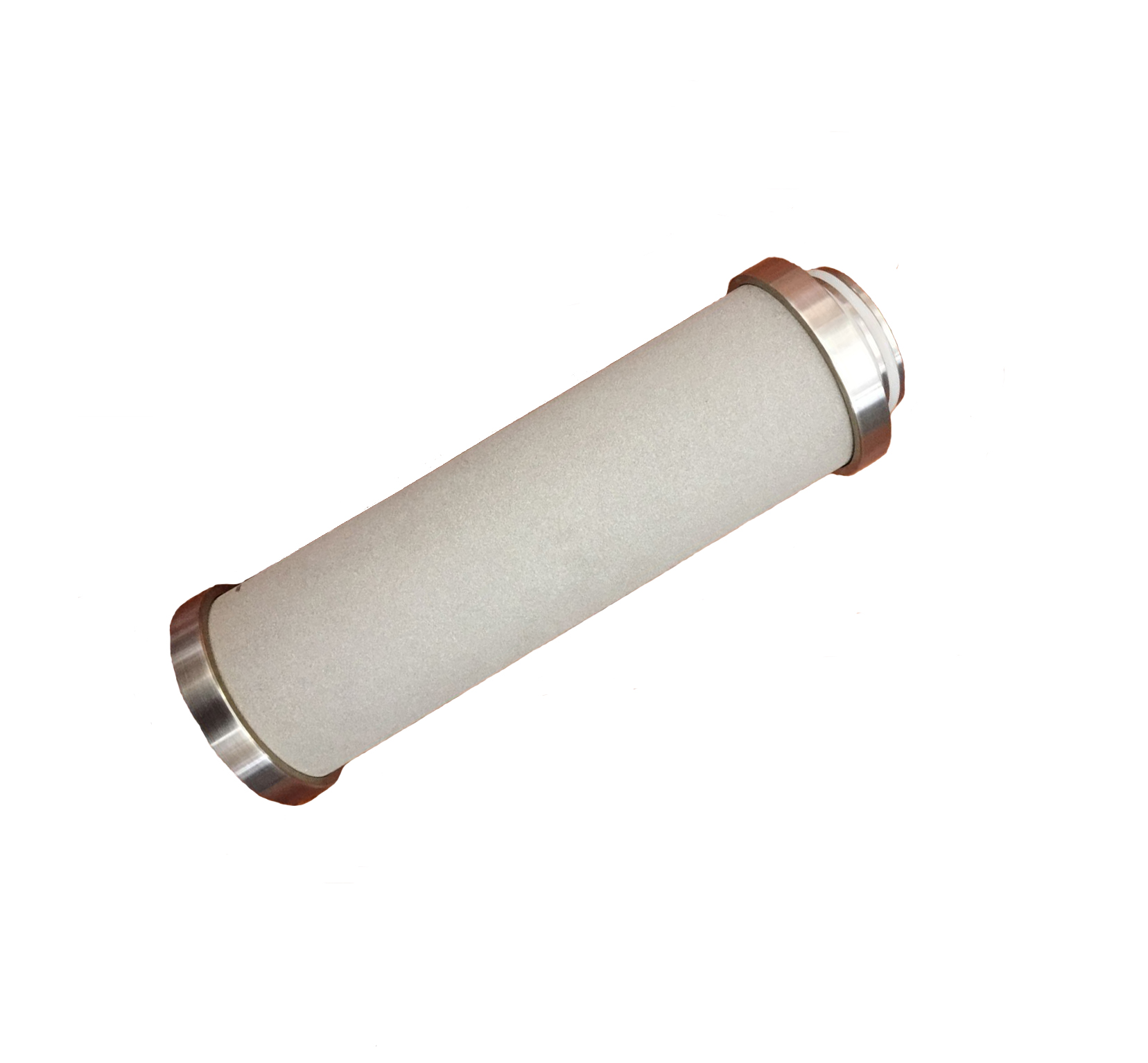

CST Sintered Cartridge Filter

CST Sintered filter made of stainless steel 316,use for steam filtration,steam was popular used in the industrial process, and the require of the steam quality is more and more higher, the high quality steam insure the system operation continuous and higher effective. Arc developed this filter special for the steam quality improve.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: Stainless Steel Ratings 0.5-75 micron OD:2.5"(60mm)

Inner Cage: Stainless Steel High work temperature Length:10",20",30",40"

Endcaps: Stainless Steel Fine Filtration effiencicy

O-ring&Gasket: Silicone, EPDM Long service life

Filter Media: Sintered Stainless Steel FDA listed components

Specifications

Ordering Guide

CST	Micron		Adapters		Length(Inch)		O-ring
STB	050	0.5	A	DOE	10	10"	V	Viton
	100	1	E	222/Fin	20	20"	E	EPDM
	300	3	E1	222/Flat	30	30"	S	Silicone
	1000	10	F	226/Fin	40	40"	N	BUNA-N
			F1	226/Flat			T	TEFLON

Part No=STA+Micron+Adapters+Length+O-ring

EG: A 40 inch 1um filters with 226/Fin adapters and Viton O-ring

The Part NO:STB100F40V
